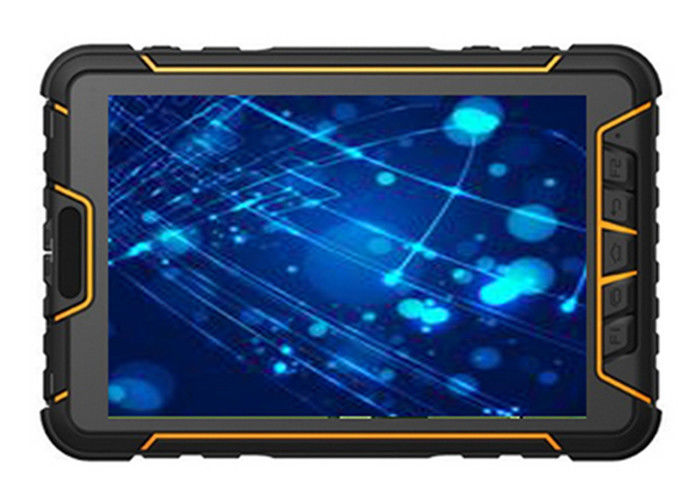

7'' Android Industrial PDA Tablet Barcode Scanner LF NFC UHF RFID Reader Fingerprint

7'' Android Industrial PDA Tablet Barcode Scanner LF NFC UHF RFID Reader Fingerprint

    • 7'' Android Industrial PDA Tablet Barcode Scanner LF NFC UHF RFID Reader Fingerprint
    • 7'' Android Industrial PDA Tablet Barcode Scanner LF NFC UHF RFID Reader Fingerprint
  • 7'' Android Industrial PDA Tablet Barcode Scanner LF NFC UHF RFID Reader Fingerprint

    Product Details:

    Place of Origin: Guangzhou, China
    Brand Name: xeumior
    Certification: CE, 3C
    Model Number: SM-907

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiated
    Packaging Details: one device in an independent carton box with standard accesssory
    Delivery Time: 3 - 7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000 pcs/month
    Contact Now
    Detailed Product Description
    Item Name: Tablet Barcode Scanner Color Depth: 32 Bit
    CPU: MSM8916, A53, 4 Core Ram: 2G
    Rom: 16G Standard Function: Wifi BT GPRS Camera
    Bluetooth: 4.0 Optional: Fingerprint
    High Light:

    rugged handheld pda

    ,

    rugged android phone with barcode scanner

    7'' Android Industrial Tablet Barcode Scanner LF NFC UHF RFID Reader Fingerprint

    Features
    Advanced system: Android 4.4 operating system; quad core 1.2 GHz CPU; RAM 2G ROM 16G, Micro SD 32G
    -- Three-proof design: IP67 three protection grade(waterproof, dustproof and shockproof), drop resistance from 1.2m
    -- Visible under strong light; 7 inch LCD screen, 1280x800 IPS capacitive touch screen
    -- Googleplay
    -- Powerful function: multi function information acquisition configuration (1D/2D bar code scanning, LF/HF/UHF RFID
    reader, fingerprint identification)
    -- Multi communication modes: 3G/4G, WIFI, Bluetooth and many wireless communication modes
    -- Strong battery life: 3.7V, 7200mAh, more than 600 hours of continuous standby
    -- Support professional GPS: support differential data or common GPS(GlONASS)
    -- Support jacket extension: satisfy custom applications from customers
    --Certification: CCC/CE/ROSH/MIL-STD-810G


    General Specifications
    Operating System Android 4.4 OS
    CPU MSM8916, A53, 4 core CPU, 1.2GHz
    RAM
    RAM: 2G
    FLASH: 16G
    Extended Storage Micro SD, Maximum 32G
    USB port 5 pin MicroUSB; support OTG (U-disk/Mouse/Keyboard/USB Ethernet cable)
    OTG
    Support, through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend
    RS232 serial port
    External port Charge port, headphone port
    Protection Grade
    Industrial Protection Grade IP67
    Drop Grade Drop resistance from 1.2m
    Wireless Communication
    Bluetooth Support 4.0
    GPS Support GPS, DBS, GLONASS and professional GPS,Ublox; GPS and Beidou (alternative)
    WIFI Support IEEE 802.11b/g/n
    4G FDD/WCDMA/GSM
    SPECIFICATIONS
    LTE_FDD B1/B3/B7 LTE_TDD B41/B40
    WCDMA B1//B2/B5
    GSM 900/1800/1900
    Data Acquisition (Optional)
    Fingerprint identification
    Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
    Type: TCSIST semiconductor sensor
    Acquisition window size: 24.5*19mm
    Effective image size:15.5*18.5mm
    Sensor type: capacitive
    Image size: 256*360 pixel
    Resolution: 500 DPI
    Matching mode: contrast mode(1:1); search mode(1:N)
    Far infrared meter reading Working frequency 37.9K
    Barcode Scanning
    1D Infrared Scanner Index:
    Scanning speed: 50 times/second
    Scanning distance: 5.7cm-60.96cm
    Scanning angle: 53.3° ±3°
    1D Laser Scanner Index:
    Scanning speed: 104 times/second+12 times/second (two way scanning)
    Scanning distance: 2.5cm-114.3cm
    Scanning angle: 47±3°(default) /35±3°(reduced code)
    2D Barcode Scanner Index:
    Identification ability: 1D, 2D, OCR
    Scanning angle: rotate 360°, incline±50°, deflection ±50°
    Field of View: Horizontal 36°, vertical 23°
    Depth of field: 4cm-23.5cm
    Environmental luminance: 0~100,000 LUX
    RFID
    LF RFID:
    134KHZ LF RFID or 124KHZ LF RFID
    NFC (HF) RFID:
    Working frequency: 13.56MHZ
    Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile
    Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC
    Identification distance: not more than 5cm
    UHF RFID:
    Working frequency: 840-960MHz(customization of required frequency band)
    Support agreement: EPC C1 GEN2/ISO 18000-6C
    Output power: 10dBm-30dBm
    Identification distance: not more than 6m
    Physical Parameters
    Display Screen 7 inch LCD screen, 1280x800 IPS screen, capacitive touch screen
    Keyboard Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
    Camera 2 million pixels front camera, 8 million pixels rear camera with automatic focus and lighting function
    Headset 3.5mm audio Interface, has mike and telephone receiver
    LED indicator light Support (ordinary flicker, Call fast flicker, missed calls) three status bar
    Flashlight Function S Support, can be used for emergency lighting
    Googleplay store S Support
    Gravity sensor Support
    Compass Support
    Vibrating motor Support
    FM Support
    Rechargeable Lithium Battery 3.7V, 7200mAh
    Standby Standby current less than 10mA
    Dimension 208*140*20mm
    Weight 620g
