Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz

I'm Online Chat Now

Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz

China Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz supplier
Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz supplier Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz supplier Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz supplier Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz supplier

Large Image :  Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz

Product Details:

Place of Origin: Guangzhou, China
Brand Name: xeumior
Certification: CE, 3C, FCC
Model Number: DT510

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD275-325/pc
Packaging Details: one device in an independent carton box with standard accesssory
Delivery Time: 3 - 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000 pcs/month
Contact Now
Detailed Product Description
Color: PDA Operating System: Android 7.0
CPU: Quad-Core ARM Cortex-A53 CPU1.3G Display: 5 Inch
RAM: 2GB ROM: 16GB
Battery: 3.7V 8000mAh Lithium RFID: 134.2 KHZ

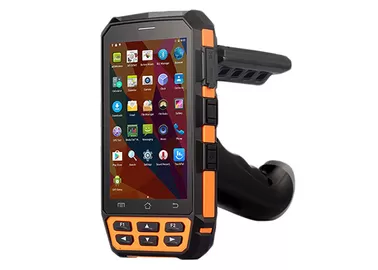

Rugged Handheld Android 7.0 Barcode Scanner PDA with RFID LF 134.2 KHz



Standard Configuration:

Android 7.0 +5'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+ 8.0MP Camera + GPS + 4G

Free SDK

Standard function:

  • 8.0M mega pixel camera
  • Multiple languages
  • Support Google Play Store
  • 2GB RAM, 16 GB ROM, MicroSD(max 32GB expansion)
  • Android 7.0 OS
  • SIM card,2 PSAM card, Micro SD (TF) Card Expand Port;
  • High capacity 4000mA large capacity battery for critical requirements

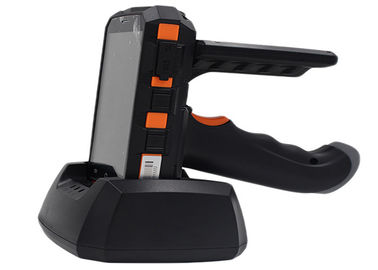

  • Pogo Pin interface for convenient charging with optional charge cradle
  • Industrial rugged design, waterproof and protection grade(IP65)

Optional function:
1D / 2D Barcode Scanner
NFC/RFID
LF/UHF 5m
Fingerprint Sensor



Technical specifications

Physical Parameter
Size 152mm(L)X77mm(H)x25mm(W)
Weight <300g
Display Screen

Color 5.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port SIM card, PSAM card(optional), Micro SD (TF) Card
Communication Interface USB2.0 Device, RS-232(Optional)
Input Mode Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity Rechargeable Li-polymer Battery 3.7V 8000mAh Optional
Frequency 8Ω 1W speaker
Key 21pcs soft silicon key
Performance Parameter
CPU Quad-Core ARM Cortex-A53 CPU1.3G
RAM 2G RAM
Flash ROM

Standard 16G NAND Flash Storage

Micro SD/TF port Max up to 32G

Data Communication
WI-FI Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover
4G All netcom Support FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/CDMA/EVDO and GSM)
Bluetooth Support Bluetooth 4.0, transmission distance is 5-10m
Operating Environment
Operating Temperature —20 to 50
Storage Temperature —25 to 70
Environment Humidity 5%RH--95%RH(no condensation)
Drop Specifications 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications 1000 times/0.5m, roll on 6 sides contact area
Sealed Environment IP65
Development Environment
Operating System Android7.0
SDK exclusive use software development kit
Supported Language JAVA
Development Tool Eclipse
A one-dimensional bar code collect
One dimensional laser scanner Honeywell N43XX
Resolution 4Mil minimum width
Ambient Light 10000ft.candles 107640 lux
Scanning Speed 104(±)12/sec (bothway)
Scanning Angle 47º±35º(Standard) / 35º±3º(narrow angle)
Support Bar Code Type UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
Two-dimensional bar code acquisition
CMOS Scanner Honeywell 3680
The Sensor Resolution 752(level)x480(vertical)pels(gray level)
Ambient Light All dark 9000ft.candles/96900 lux
Focus element (VLD) 655nm ± 10nm
Support bar code type PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
RFID
LF 125K/134K;ISO11784/ISO11785 protocol
HF(NFC) 13.56MHz;ISO14443A/B 15693 protocol
Camera Hd 8.0 million pixels, with LED, automatic focusing
GPS Support A-GPS



About us
xeumior company has been manufacturing and trading pos peripherals and electronic products since 2012.
xeumior's purpose is to use quality products and prfossional technical services to exceed
customer expectations, with the persistent hard work to win customer's trust and respect.
I Believe that xeumior is your best partner and look forward to our joint efforts, our common
success is our greatest glory.
Our goal is to provide client the high quality products with competitive price , excellent services .We make a point to stand in your shoes and think like a buyer so we can meet your needs quickly and accurately. Our sales representatives are highly motivated, enthusiastic, energetic, self-reliant professionals who are eager to help our customers with any needs they may have. In addition to answering all kinds of questions, they are passionate about providing our clients with the most recent product information, as well as helping you to decide on choosing products that are best suited to your needs.
Our Service
Xeumior features a one-stop solution that covers a wide range of POS products, where our customers may easily find everything they need including convenient after-sale services. Based on the principle of providing the most satisfaction, cost effectiveness is one of our competitive advantages. Our products are all qualified to the highest standard and have the best durability. You can get every POS product from us,such can avoid high shipping fee generated from multiple orders.
Our Advantage:
1, Our product has warranty time of 1 years
2. We dont have MOQ, our MOQ is 1 set.
3. We provide a whole pos system related products,such you can avoid high shipping fee generated from multiple orders.
4. We provide OEM/ODM.
5, Each pos terminal will be tested at least 24 hrs before ship
RFQ:
Q: Can you make OEM or ODM for products?
A: OEM and ODM products are available for customers, as long as customers meet the MOQ. Also we have engineers for logo and products design for customers.
Q: What about delivery time?
A: Samples within three working days and bulk order within one week after received payment.
Q: What waranty and after-sale service do you offer?
A: 1 year warranty. During warranty period, the damage caused by non-human factor, we will be responsible for the free repair. Overdue warranty period,we will continue to provide services with reasonable price to the customer.
Q: How about the shipping way?
A: There are DHL,FEDEX,TNT,UPS,EMS,air cargo, by sea(we also can ship goods by your shipping account or other agent you proivded)
