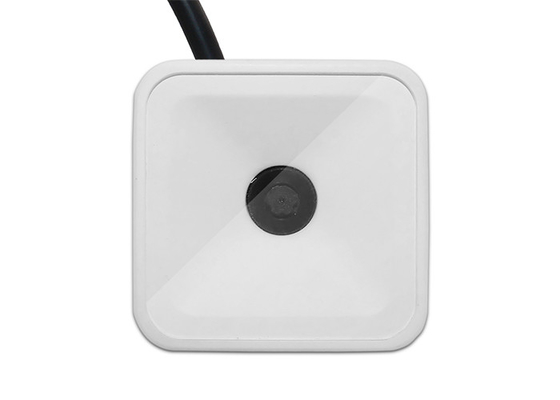

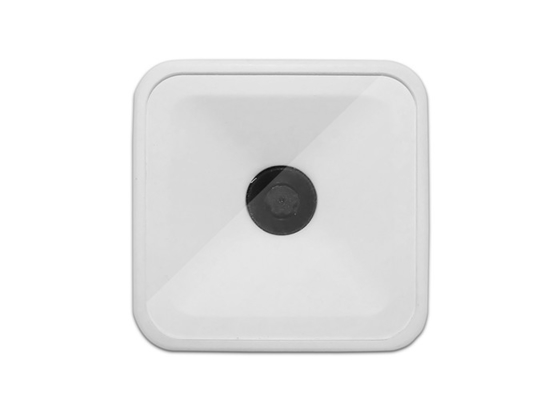

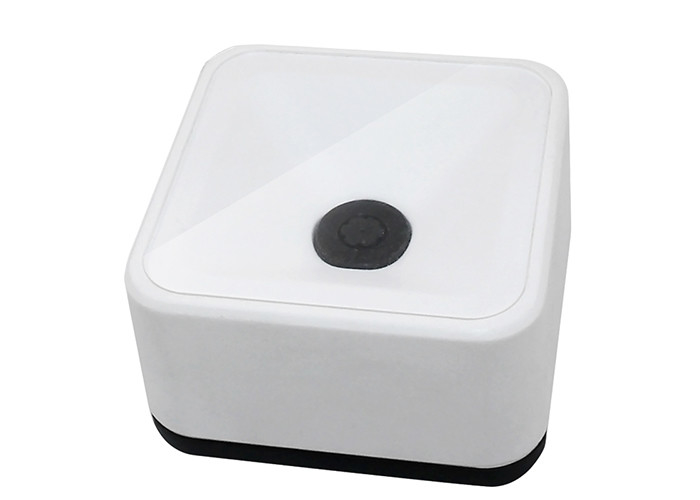

QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal

QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal

    • QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal
    • QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal
    • QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal
    • QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal
  • QR Code 2D Barcode Scanner Module Multiple Interface RS232 USB For Payment Terminal

    Product Details:

    Place of Origin: Guangzhou, China
    Brand Name: xeumior
    Certification: CE, RoHS, FCC
    Model Number: MN700

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiated

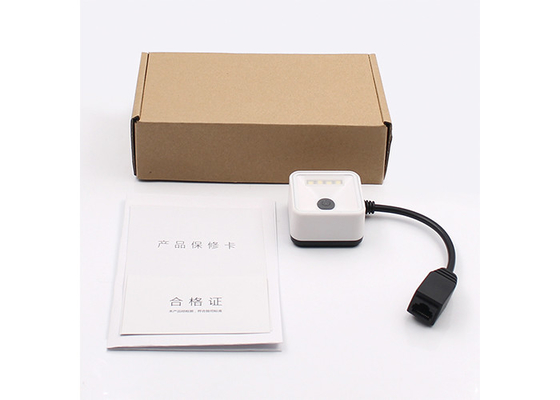

    Packaging Details: Normal craft paper and foam
    Delivery Time: 3 - 7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description
    Item: Barcode Scanner Module Scan Model: Auto Scan
    Light Source: White LED Interface: USB, RS232,TTL , Wiegand
    Resolution: 5 Mil Decoding: QR, 1D ,2D
    Size: 5cmx5cmx3cm
    High Light:

    QR Code 2D Barcode Scanner Module

    ,

    Multiple Interface Barcode Scanner Module

    ,

    RS232 USB Barcode Scanner Module

    Multiple Interface RS232 USB QR Code 2D Barcode Scanner Module for Payment Terminal





    Features



    New generation, compact module for fixed-mount applications with the latest decoding core, provides a powerful scanning performance for all 1D, PDF, and 2D barcodes on mobile phone screens or on paper.


    Provides a plug-and-play, integrated module solution for verifying barcodes, collecting payments, and billing customers.


    Designed with a wide viewing angle and shallow depth of field to help ensure optimized performance for reading screen barcodes in near field. The broad decoding capabilities include rapid decoding of all 1D and 2D barcodes with particularly powerful reading capability of highly- reflective mobile phone screens, reducing process time and helping to improve the user experience.


    Operates with white LED illumination to improve the reading performance of label barcodes in a low lighting environments. It is one of the very few 2D modules which has optimized performance for both screen barcodes and label barcodes,reducing customer cost and helping to improve the user experience.





    Application



    1.Automatic gate, Access control system

    2.Ticket Vending Machine

    3.Vending Machine

    4.Garbage sorting bin

    5.Manufacturing

    6.Warehouse & Logistics

    7.Hospital Self-service machine

    8.Parking lot

    9.Payment terminal





    Specification:





    Performance Sensor 640*480 CMOS
    Symbologies 1D EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5, GS1 DataBar(RSS14), GS1 DataBar Limited,GS1 DataBar Expanded,ISBT-128,GS1-128,code39FULLASCII
    2D PDF417,QRcode,MicroQR,Aztec,Datamatrix



    Depth of field

    Tested Code Min Max
    UPC-13mil 1cm 8cm
    20 mil code39 5cm 9cm
    20 mil QR Code 0cm 6cm
    OS Linux,Android,Windows XP, 7, 8,10,MacOS
    Scan Mode Auto Scan , command scan
    Countires Keyboard English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish (F, Q ), Greek, Belgian (French)
    Min resolution Code 39 5mil
    Decode capacity 1D/2D Codes on printed paper and mobile screen
    Min Print contrast 35%
    Second development By serial command
    Envoirnmental Drop Withsand drop from 1.5 meters 5 times
    Sealing IP54
    Operating Temperature 0-55℃
    Storage Temperature -20-60℃
    Operating Humidity 5-95% Non condensing
    Storage Humidity 5-95% Non condensing
      Indication LED, BEEPER

    Physical



    Net Weight 64g
    Gross Weight USB:195g/RS232:270g
    Dimension 50mm*50mm*30mm
    Packing Dimension 185mm*101mm*52mm
    Cable Length 180cm±3cm
    Interface USB,serial(TTL,RS232,RS485),weigand
    Voltage 5V
    USB Standby Power 118mA/0.59W RS232 Standby Power 118mA/0.59W
    Operating Power 149mA/0.745W Operating Power 149mA/0.745W
    MAX Power 151mA/0.755W MAX Power 151mA/0.755W






    About us
    xeumior company has been manufacturing and trading pos peripherals and electronic products since 2012.
    xeumior's purpose is to use quality products and prfossional technical services to exceed
    customer expectations, with the persistent hard work to win customer's trust and respect.
    I Believe that xeumior is your best partner and look forward to our joint efforts, our common
    success is our greatest glory.
    Our goal is to provide client the high quality products with competitive price , excellent services .We make a point to stand in your shoes and think like a buyer so we can meet your needs quickly and accurately. Our sales representatives are highly motivated, enthusiastic, energetic, self-reliant professionals who are eager to help our customers with any needs they may have. In addition to answering all kinds of questions, they are passionate about providing our clients with the most recent product information, as well as helping you to decide on choosing products that are best suited to your needs.
    Our Service
    Xeumior features a one-stop solution that covers a wide range of POS products, where our customers may easily find everything they need including convenient after-sale services. Based on the principle of providing the most satisfaction, cost effectiveness is one of our competitive advantages. Our products are all qualified to the highest standard and have the best durability. You can get every POS product from us,such can avoid high shipping fee generated from multiple orders.
    Our Advantage:
    1, Our product has warranty time of 1 years
    2. We dont have MOQ, our MOQ is 1 set.
    3. We provide a whole pos system related products,such you can avoid high shipping fee generated from multiple orders.
    4. We provide OEM/ODM.
    5, Each pos terminal will be tested at least 24 hrs before ship
    RFQ:
    Q: Can you make OEM or ODM for products?
    A: OEM and ODM products are available for customers, as long as customers meet the MOQ. Also we have engineers for logo and products design for customers.
    Q: What about delivery time?
    A: Samples within three working days and bulk order within one week after received payment.
    Q: What waranty and after-sale service do you offer?
    A: 1 year warranty. During warranty period, the damage caused by non-human factor, we will be responsible for the free repair. Overdue warranty period,we will continue to provide services with reasonable price to the customer.
    Q: How about the shipping way?
    A: There are DHL,FEDEX,TNT,UPS,EMS,air cargo, by sea(we also can ship goods by your shipping account or other agent you proivded)
