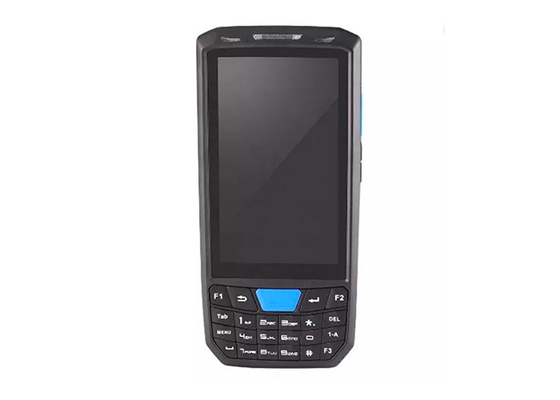

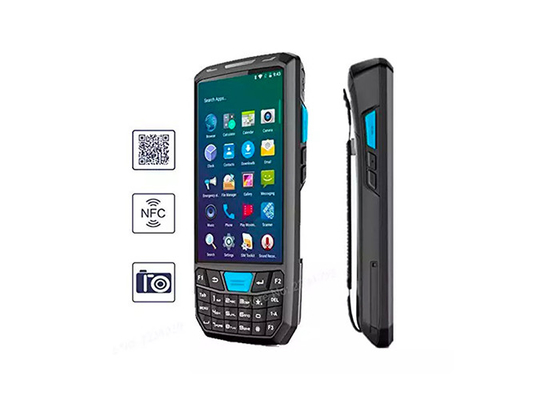

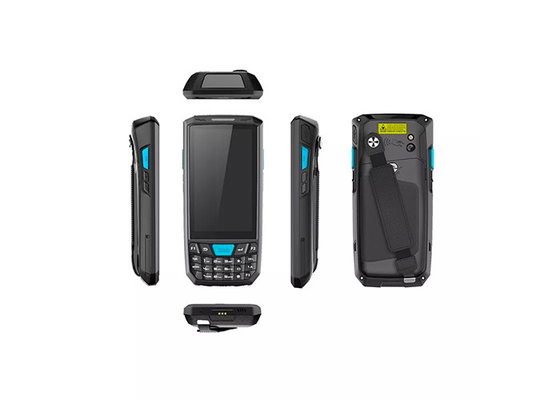

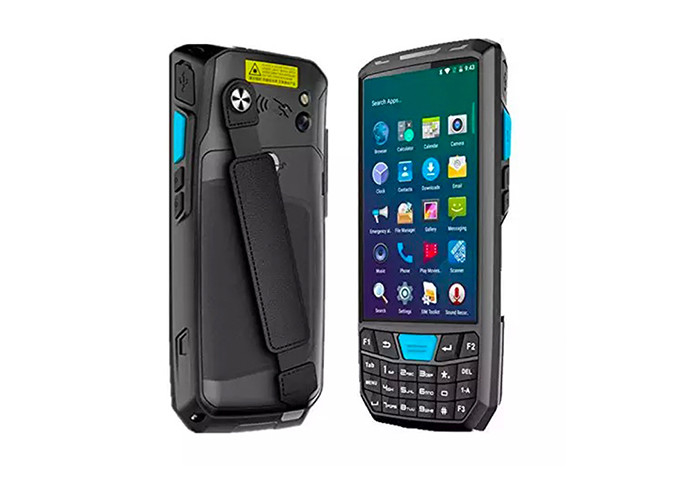

Wireless Warehouse Handheld NFC Rugged Barcode Scanner Android PDA Data Terminal RFID 4G WIFI
Feature :
1. Android9.0 operation system;
2. Cortex A-53 2.0 GHz quad-core
3. Hd 8 million pixels, with LED, automatic focusing;
4. SIM card, PSAM card, Micro SD (TF) Card Expand Port;
5. Rechargeable Li-polymer Battery 3.7V 4000mAh;
6. Color 4.5inch QVGA imitative glass durable touch screen.
7. Sealed Environment: IP66
8. Support 1D,2D QR barcode scanner
9. Support NFC(HF.13.56M rfid) or 125K RFID
Application:
1.Warehouse inventory management
2.Transportation, logistics tracking
3.Hospital ward inspection and management
4.Electric power inspection
5.Chain retail goods management
6.Government and Private Sector
7.Mobile communications
Technical specifications
| PHYSICAL CHARACTERISTICS |
| Dimension and Weight |
166 x 77.5x 22mm |
| Display and Touch Panel |
4.5'' WVGA (480*854), 650000 colors Rugged dual touch capacitive touch panel |
| Power |
Main battery: Li-ion, rechargeable, 4200mAh |
| Expansion Slot |
2* PSAM (Optional): ISO7816 protocol , 1 SIM, 1 MicroSD (TF) slot |
| Interfaces |
Type -C USB |
| Keypad |
21 pcs soft silicon key |
| AC Adapter |
Input: 100V-240V, 50-60Hz, 0.29A ,Output: 5V, 2A |
| PERFORMANCE CHARACTERSTICS |
| CPU |
Cortex A-53 2.0 GHz quad-core |
| Storage |
RAM+ROM: 2GB+16GB |
| Operating System |
Android 9.0 |
| USER ENVIRONMENT |
| Operating Temp. |
-20°C to 55°C |
| Storage Temp. |
-25°C to 70°C |
| Humidity |
5%RH - 95%RH non condensing |
| Drop Specifications |
Multiple 1.5m drops to concrete across the operating temperature range |
| Sealing |
IP66 |
| Developing Environment |
| SDK |
Software Development Kit |
| Language and Tool |
Java,Eclipse / Android Studio |
| DATA COMMUNICATION |
| WWAN |
4G:TDD -LTE (B38 ,B39,B40,B41) FDD-LTE (B1,B3) |
| 3G:WCDMA 850/900/1700/1900/2100MHz |
| 2G: GSM/dege/GPRS 850/900/1800/1900MHz |
| WLAN |
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| blue tooth |
Support BT2.0 +EDR/3.0 +HS/4.1+HS,Transmission distance is 5-10m |
| GNSS |
GPS/AGPS, internal antenna |
| BARCODE READER(OPTIONAL) |
| 1D Linear Scanner |
Honeywell N4313
Symbol 955
Minde966
|
UPC/RAN,Code128 ,Code 39 ,code 93.Code11 ,Interleaved 2 of 5 ,Discrete 2 of 5 ,Chinese 2 of 5 ,Codabar ,MSI,RSS |
| 2D imager scanner |
Honeywell N5703 Honeywell N6603
Newland E483
|
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX). etc. |
| COLOR CAMERA |
| Resolution |
8MP autofocus camera with flash |
| NFC (optional) |
| Frequency |
13.56MHz |
| Protocol |
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| ACCESSORIES |
| Standard |
AC Adapter,,USB cable,Cradle (Optional) |
About us
xeumior company has been manufacturing and trading pos peripherals and electronic products since 2012.
xeumior's purpose is to use quality products and prfossional technical services to exceed
customer expectations, with the persistent hard work to win customer's trust and respect.
I Believe that xeumior is your best partner and look forward to our joint efforts, our common
success is our greatest glory.
Our goal is to provide client the high quality products with competitive price , excellent services .We make a point to stand in your shoes and think like a buyer so we can meet your needs quickly and accurately. Our sales representatives are highly motivated, enthusiastic, energetic, self-reliant professionals who are eager to help our customers with any needs they may have. In addition to answering all kinds of questions, they are passionate about providing our clients with the most recent product information, as well as helping you to decide on choosing products that are best suited to your needs.
Our Service
Xeumior features a one-stop solution that covers a wide range of POS products, where our customers may easily find everything they need including convenient after-sale services. Based on the principle of providing the most satisfaction, cost effectiveness is one of our competitive advantages. Our products are all qualified to the highest standard and have the best durability. You can get every POS product from us,such can avoid high shipping fee generated from multiple orders.
Our Advantage:
1, Our product has warranty time of 1 years
2. We dont have MOQ, our MOQ is 1 set.
3. We provide a whole pos system related products,such you can avoid high shipping fee generated from multiple orders.
4. We provide OEM/ODM.
5, Each pos terminal will be tested at least 24 hrs before ship
RFQ:
Q: Can you make OEM or ODM for products?
A: OEM and ODM products are available for customers, as long as customers meet the MOQ. Also we have engineers for logo and products design for customers.
Q: What about delivery time?
A: Samples within three working days and bulk order within one week after received payment.
Q: What waranty and after-sale service do you offer?
A: 1 year warranty. During warranty period, the damage caused by non-human factor, we will be responsible for the free repair. Overdue warranty period,we will continue to provide services with reasonable price to the customer.
Q: How about the shipping way?
A: There are DHL,FEDEX,TNT,UPS,EMS,air cargo, by sea(we also can ship goods by your shipping account or other agent you proivded)
