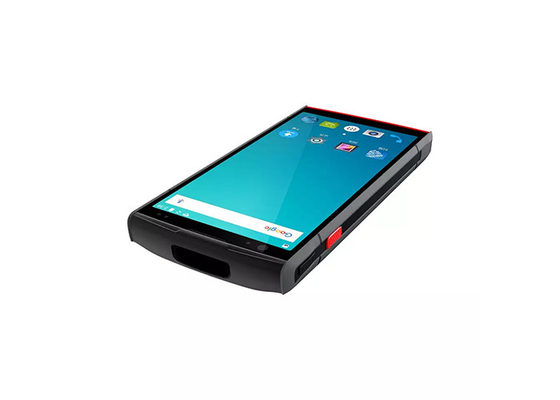

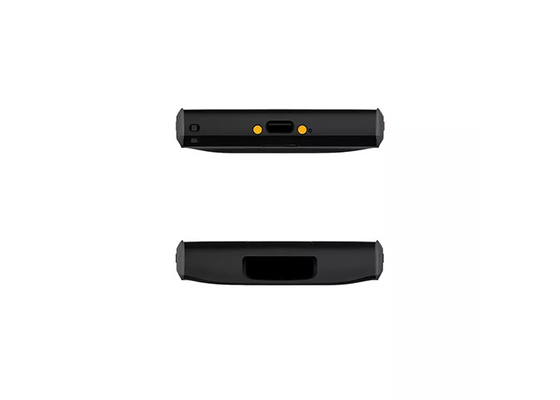

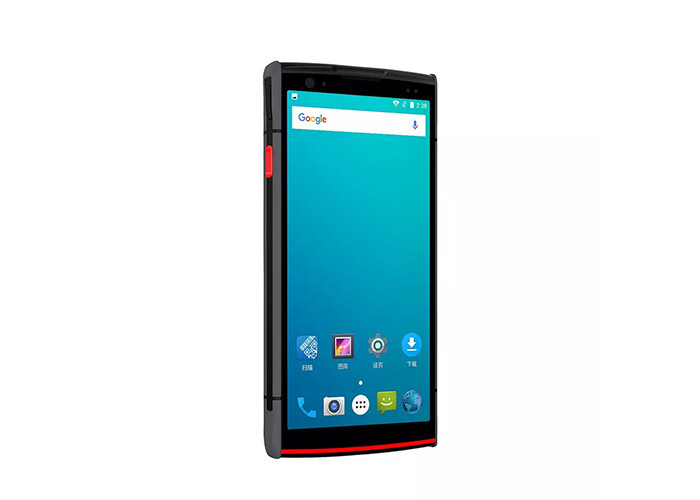

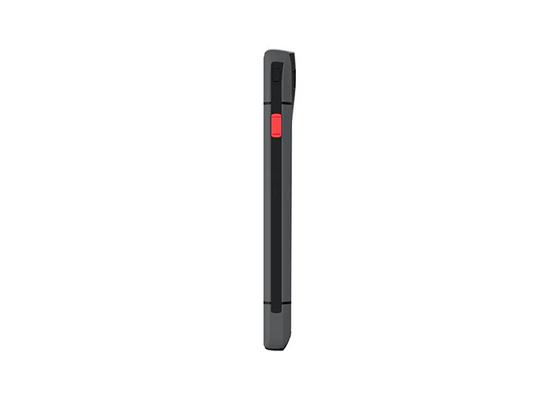

Mobile Android Rugged PDA Handheld 1D 2D QR Code Barcode Scanner with NFC Reader
Standard Configuration:
Android 10 +5.5'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+ 13MP Camera + GPS + 4G
Free SDK
Feture :
High-speed operation performance:
With android 10 operating system, matching 64 bit quad core 2.0GHz high speed processor with perfect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 1D and 2D barcode scanning,NFC(optional).
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.5 inch IPS (720x1440) Work even with water or Gloves.
Abundant means of data transportation(option):
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Front 2 megapixel camera,Rear 13 megapixel camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.
Specification:
|
Model
|
DT55 Industrial Smart Handheld PDA
|
|
Performance
|
|
Quad core CPU
|
Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor
|
|
RAM+ROM
|
2GB+16GB Supports up to 3GB+32GB
|
|
Expand memory
|
Micro SD(TF) Supports up to 128GB
|
|
System
|
Android 10
|
|
Data communication
|
|
WLAN
|
Dual-band 2.4GHz / 5GHz,
Supporting IEEE 802 a/b/g/n/ac protocol
|
|
WWAN
|
2G:GSM(850/900/1800/1900MHz)
|
|
3G:WCDMA(850/900/1900/2100MHz)
|
|
4G:FDD:B1/B3/B4/B7/B8/B12/B20
|
|
TDD:B38/B39/B40/B41
|
|
Blue tooth
|
Support Blue tooth 2.1+EDR/3.0+HS/4.1+HS
Transmission distance 5-10 meters
|
|
GNSS
|
Support GPS, Galileo, Glonass, Beidou
|
|
Physical parameter
|
|
Dimensions
|
147.3mm×71.1mm×13.5mm
|
|
Weight
|
＜500g
(Depends on device function configuration)
|
|
Display
|
5.5 inch IPS color display with resolution 720*1440
|
|
TP
|
Corning Gorilla glass, Supports multi-touch
Supported gloves and wethands
|
|
Battery capacity
|
Rechargeable polymer battery (3.8V 4200mah) removable
|
|
Standby time >350 hours
|
|
Working time > 12 hours
|
|
Charging time 3-4H, Using standard power adapter and data cable
|
|
Expansion
Card slot
|
PSAM x 2, Micro SIM card x 1 , TF card × 1
|
|
Communication interface
|
Type-C USB x 1, OTG
|
|
Audio
|
Speaker (mono), Microphone, Earpiece
|
|
Keypad
|
Silicone button: Power button, Volume +/- button,
Scan button × 2
|
|
Sensor
|
Gravity sensor, Light sensor, Proximity sensor,
Vibration motor
|
|
Data collection
|
|
Barcode scanning (Optional)
|
|
2D
Linear canner
|
Newland EM6601
Honeywell N6603
|
|
2D
Symbologies
|
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,
Maxicode,Hanxin Code,etc.
|
|
Camera
|
|
Rear camera
|
13MP HD camera,Support auto focus,
Flash, Anti-shake, Macro shooting
|
|
Front camera
|
2MP color camera
|
|
NFC (Optional)
|
|
Frequency
|
13.56MHz
|
|
Protocol
|
Support ISO14443A/B, 15693 agreement
|
|
Distance
|
2cm-5cm
|
|
Language/input method
|
|
Input
|
English, Pinyin, Five strokes, Handwriting input, Support soft keypad
|
|
Language
|
Language packs in Simplified Chinese,
Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
|
|
User environment
|
|
Operating temperature
|
-20℃ - 55℃
|
|
Storage temperature
|
-40℃ - 70℃
|
|
Environment humidity
|
5%RH--95%RH(no condensation)
|
|
Drop specification
|
6 sides Supports 1.5 meters drops and 30 times
to the concrete within the operating temperature
|
|
Rolling test
|
500×0.5m rolling for 6 sides
|
|
Protection level
|
IP66
|
|
Accessories
|
|
Standard
|
Adapter, Data cable, Protective film,
Instruction manual
|
About us
xeumior company has been manufacturing and trading pos peripherals and electronic products since 2012.
xeumior's purpose is to use quality products and prfossional technical services to exceed
customer expectations, with the persistent hard work to win customer's trust and respect.
I Believe that xeumior is your best partner and look forward to our joint efforts, our common
success is our greatest glory.
Our goal is to provide client the high quality products with competitive price , excellent services .We make a point to stand in your shoes and think like a buyer so we can meet your needs quickly and accurately. Our sales representatives are highly motivated, enthusiastic, energetic, self-reliant professionals who are eager to help our customers with any needs they may have. In addition to answering all kinds of questions, they are passionate about providing our clients with the most recent product information, as well as helping you to decide on choosing products that are best suited to your needs.
Our Service
Xeumior features a one-stop solution that covers a wide range of POS products, where our customers may easily find everything they need including convenient after-sale services. Based on the principle of providing the most satisfaction, cost effectiveness is one of our competitive advantages. Our products are all qualified to the highest standard and have the best durability. You can get every POS product from us,such can avoid high shipping fee generated from multiple orders.
Our Advantage:
1, Our product has warranty time of 1 years
2. We dont have MOQ, our MOQ is 1 set.
3. We provide a whole pos system related products,such you can avoid high shipping fee generated from multiple orders.
4. We provide OEM/ODM.
5, Each pos terminal will be tested at least 24 hrs before ship
RFQ:
Q: Can you make OEM or ODM for products?
A: OEM and ODM products are available for customers, as long as customers meet the MOQ. Also we have engineers for logo and products design for customers.
Q: What about delivery time?
A: Samples within three working days and bulk order within one week after received payment.
Q: What waranty and after-sale service do you offer?
A: 1 year warranty. During warranty period, the damage caused by non-human factor, we will be responsible for the free repair. Overdue warranty period,we will continue to provide services with reasonable price to the customer.
Q: How about the shipping way?
A: There are DHL,FEDEX,TNT,UPS,EMS,air cargo, by sea(we also can ship goods by your shipping account or other agent you proivded)
