    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: xeumior
    Certification: FCC, CE,BSMI, CB, WEEE, RoHS
    Model Number: X200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiated
    Packaging Details: one device in an independent carton box with standard accesssory
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    CPU: 24 Bit Interface: USB
    Scan Element Type: CMOS Optical Re Optical Resolution: 5 Megapixels Solution: 5 Megapixels
    Light Source: Visible + IR + UV OS: Windows XP / Vista / 7 / 8 / /10
    Output Image Formats: BMP, JPG SDK Language: C/C++, C#, C# WPF, VB6, .NET, Java
    Item Name: RFID Passport Scanner
    High Light:

    passport reader machine

    ,

    ocr passport scanner

    X200 RFID Document OCR MRZ Passport Scanner Kiosk MRZ e-Passport ID Card Reader Machine





    Features:



    RFID

    White light, Infra-red and UV light





    Plustek SDK for software application integration
    The following SDKs are available to integrate the SecureScan Scanner into your application.
    • Passport/MRZ SDK
    • Driver’s License & State issued ID card SDK
    • OCR SDK
    • Scanning and Image Enhancement SDK





    Specifications:

    Product Name
    SecureScan X 200
    Scanner Type
    Passport & ID Scanner with RFID (E-Passport)
    Image Sensor
    Area Color CMOS
    Optical Reolution
    5M Pixels
    Output Resolutions
    300dpi / 400dpi / 500dpi / 600dpi
    Output Image Formats
    BMP, JPG
    Illumination Sources
    Visible (White, 400~680nm)
    IR (Infra-Red, 940nm)
    UV (Ultra Violet, 365nm)
    Image Color Depth
    Visible / UV : 24 bits/pixels
    IR : 8 bits/pixels (Grayscale)
    Machine Readable Zone
    ICAO 9303 standard compliant documents
    TD1 (85.6 x 54mm)
    TD2 (105 x 74mm)
    MRP (125 x 88mm)
    MRV
    Scanning Speed
    Approx. 1 sec (Color Mode, Full Page passport image capture)
    Contactless IC Reader
    E-Passport
    ICAO recommendations in ICAO Doc 9303 supplement, LDS 1.7
    ISO 14443 Type-A and Type-B at 13.56 MHz, all standardized rates up to 848 Kbps
    PA, AA, BAC, EAC (V1.11)
    RFID Data Download Speed
    Approx. 3 sec (Read-out times depend on RFID tag, operating system and amount of data stored in the chip)
    Daily Duty (Pages)
    5,000
    Scanning Area (W x L)
    Max: 127 x 95 mm (5" x 3.74")
    Acceptable Paper Sizes (W x L)
    Max: 125 x 88 mm (4.92" x 3.46")
    Action Button
    Dual Auto Detect Sensors
    Power Supply
    AC Power: 24V / 0.75A
    Interface
    USB 2.0 (Connector Type: Type-B)
    USB 2.0 Port x 2 (Extension)
    Net Weight
    1.7 Kgs (3.78 Lbs)

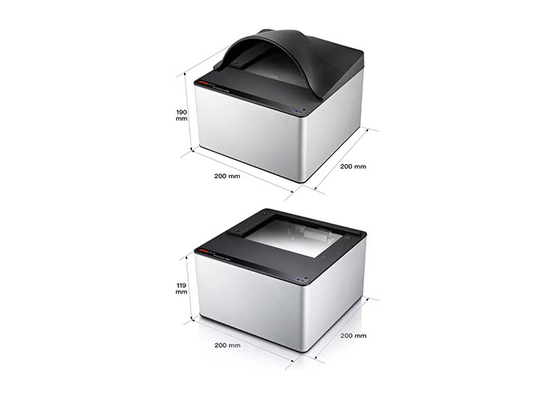

    Dimensions (W x D x H)
    Without Cover: 200 x 200 x 119 mm (7.87" x 7.87" x 4.69")
    With Cover: 200 x 200 x 190 mm (7.87" x 7.87" x 7.48")
    Operating Systems
    Windows 7 / 8 / 10 (32/64 bits, Windows WHQL certified)
    Linux Ubuntu 16.04 (32/64 bit) / 18.04 (64 bit) / 20.04 (64 bit)
    *LINUX SANE only for Systems Integrator. Please contact local sales
    Bundled Software
    For quick test, please download "ePassport" demo program from Plustek download center or contact us for SDK.
    SDK Programming Language
    C/C++, C#, C# WPF, VB6, .NET, Java
    Compliances
    FCC, CE,BSMI, CB, WEEE, RoHS
    Oprating Temperature
    5°C to 45°C
    Oprtating Humidity
    0 to 95% (Non-condensing)
    IP Rating
    IP53
    Buzzer
    Yes
