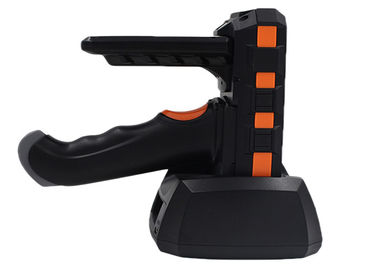

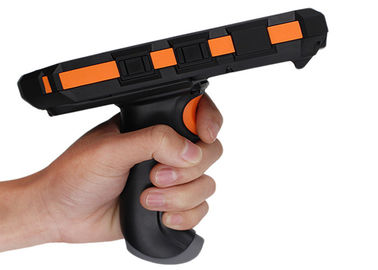

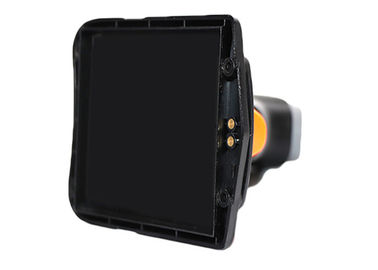

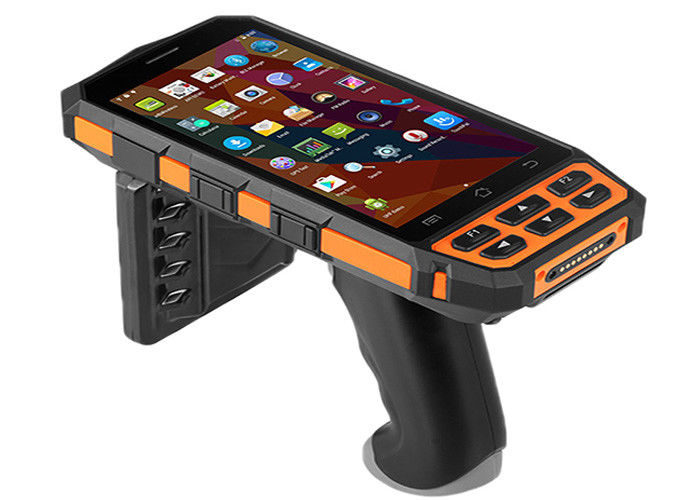

5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection

5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection

    • 5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection
    • 5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection
    • 5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection
    • 5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection
  • 5" Portable POS Terminal Barcode Scanner UHF RFID Android PDA Data Collection

    Product Details:

    Place of Origin: Guangzhou, China
    Brand Name: xeumior
    Certification: CE, 3C, FCC
    Model Number: SM-DT510

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: USD275-325/pc
    Packaging Details: one device in an independent carton box with standard accesssory
    Delivery Time: 3 - 7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000 pcs/month
    Contact Now
    Detailed Product Description
    Color: Android Pda Operating System: Android 7.0
    CPU: Quad A53 1.5Ghz Display: 5 Inch
    RAM: 2GB ROM: 16GB
    Battery: 3.7V 8000mAh Lithium RFID: `125 KHz
    High Light:

    Portable RFID POS Terminal Barcode Scanner


    5" UHF POS Terminal Barcode Scanner


    1.5Ghz POS Terminal Barcode Scanner

    5" Portable UHF RFID POS Terminal Barcode Scanner Android PDA Data Collection


    Standard Configuration:

    Android 7.0 +5'' Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+ 8.0MP Camera + GPS + 4G

    Free SDK

    Standard function:

    • 8.0M mega pixel camera
    • Multiple languages
    • Support Google Play Store
    • 2GB RAM, 16 GB ROM, MicroSD(max 32GB expansion)
    • Android 7.0 OS
    • SIM card,2 PSAM card, Micro SD (TF) Card Expand Port;
    • High capacity 4000mA large capacity battery for critical requirements
    • Pogo Pin interface for convenient charging with optional charge cradle
    • Industrial rugged design, waterproof and protection grade(IP65)
    Optional function:
    1D / 2D Barcode Scanner
    LF/UHF 5m
    Fingerprint Sensor


    Technical specifications

    Physical Parameter
    Size 152mm(L)X77mm(H)x25mm(W)
    Weight <300g
    Display Screen

    Color 5.0 inch QVGA imitative glass durable touch screen

    TFT-LCD, 650000 colors, 480*800 (QVGA size)

    The brightness of LED Backlight is adjustable

    Expand Port SIM card, PSAM card(optional), Micro SD (TF) Card
    Communication Interface USB2.0 Device, RS-232(Optional)
    Input Mode Standard Stylus, Handwriting, touching input or keyboard input
    Battery Capacity Rechargeable Li-polymer Battery 3.7V 8000mAh Optional
    Frequency 8Ω 1W speaker
    Key 21pcs soft silicon key
    Performance Parameter
    CPU Quad-Core ARM Cortex-A53 CPU1.3G
    RAM 2G RAM
    Flash ROM

    Standard 16G NAND Flash Storage

    Micro SD/TF port Max up to 32G

    Data Communication
    WI-FI Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover
    Bluetooth Support Bluetooth 4.0, transmission distance is 5-10m
    Operating Environment
    Operating Temperature —20 to 50
    Storage Temperature —25 to 70
    Environment Humidity 5%RH--95%RH(no condensation)
    Drop Specifications 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
    Roll Specifications 1000 times/0.5m, roll on 6 sides contact area
    Sealed Environment IP65
    Development Environment
    Operating System Android7.0
    SDK exclusive use software development kit
    Supported Language JAVA
    Development Tool Eclipse
    A one-dimensional bar code collect
    One dimensional laser scanner Honeywell N43XX
    Resolution 4Mil minimum width
    Ambient Light 10000ft.candles 107640 lux
    Scanning Speed 104(±)12/sec (bothway)
    Scanning Angle 47º±35º(Standard) / 35º±3º(narrow angle)
    Support Bar Code Type UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
    Two-dimensional bar code acquisition
    CMOS Scanner Honeywell 3680
    The Sensor Resolution 752(level)x480(vertical)pels(gray level)
    Ambient Light All dark 9000ft.candles/96900 lux
    Focus element (VLD) 655nm ± 10nm
    Support bar code type PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
    LF 125K/134K;ISO11784/ISO11785 protocol
    HF(NFC) 13.56MHz;ISO14443A/B 15693 protocol
    Camera Hd 8.0 million pixels, with LED, automatic focusing
    GPS Support A-GPS
