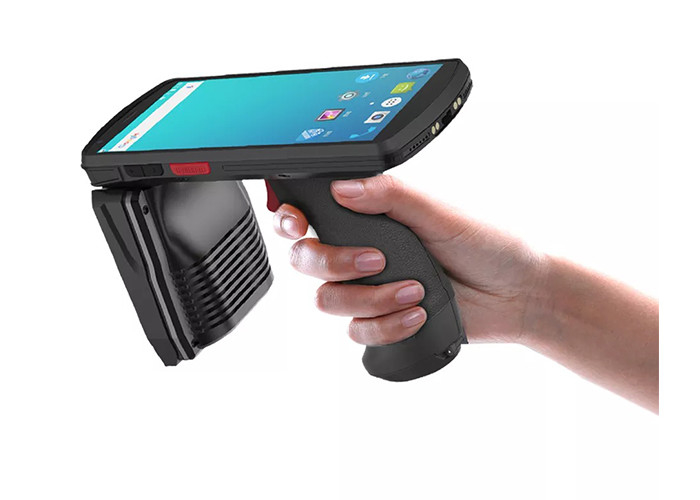

5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal With NFC 2D Barcode Scanner

5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal With NFC 2D Barcode Scanner

    • 5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal With NFC 2D Barcode Scanner
    • 5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal With NFC 2D Barcode Scanner
    • 5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal With NFC 2D Barcode Scanner
  • 5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal With NFC 2D Barcode Scanner

    Product Details:

    Place of Origin: China
    Brand Name: Xeumior
    Certification: CE, RoHS, FCC
    Model Number: DT501

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiated
    Packaging Details: carton box with standard
    Delivery Time: 3 - 7 working days
    Payment Terms: Paypal, T/T, L/C
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Item: Handhed RFID Reader Screen: 5.5 Inch
    OS: Android 10 Rear Camera: 13MP
    Memory: 3GB+32GB Battery: 3.8V 5600mAh
    High Light:

    Mobile Phone UHF RFID Reader

    ,

    5.7" Android Handheld UHF RFID Reader

    ,

    13MP UHF RFID Reader

    5.5" Android Handheld Mobile Phone UHF RFID Reader Terminal with NFC 2D Barcode Scanner







    Feture :

    1.Android 10.0

    2.Removable battery 5000 mAh

    3.13 MP camera rear camera + 2MP front camera

    4.Read distance reach to 13m

    5.Honeywell 2D barcode scanner





    Specification:



    Model
     Handheld UHF RFID Reader
    Performance
    Octa core CPU
    Cortex-A53 Octa-core 64-bit 2.0GHz
    high-performance processor
    RAM+ROM
    3GB+32GB
    Supports up to 4GB+64GB
    Expand memory
    Micro SD(TF) Supports up to 128GB
    System
    Android 10
    Data communication
    WLAN
    Dual-band 2.4GHz / 5GHz,
    Supporting IEEE 802 a/b/g/n/ac protocol
    WWAN
    2G:GSM(850/900/1800/1900mhz)

    3G:WCDMA(850/900/1900/2100mhz)

    4G:FDD:B1/B3/B4/B7/B8/B12/B20

    TDD:B38/B39/B40/B41
    Blue tooth
    Support Blue tooth 2.1+EDR/3.0+HS/4.1+HS
    Transmission distance 5-10 meters
    GNSS
    Support Gps, Galileo, Glonass, Beidou
    Physical parameter
    Dimensions
    159mm×75mm×124mm
    Weight
    <500g
    (Depends on device function configuration)
    Display
    5.7 inch IPS color display with resolution 720*1440
    TP
    Corning gorilla glass, Supports multi-touch
    Supported gloves and wet hands
    Battery capacity
    Rechargeable polymer battery (3.8V 5000MAh) removable

    Standby time >350 hours

    Working time > 12 hours

    Charging time 3-4H, Using standard power
    adapter and data cable
    Expansion
    Card slot
    PSAM x 2, Nano SIM card x 1 , TF card × 1
    Communication interface
    Type-C USB x 1, OTG
    Audio
    Speaker (mono), Microphone, Earpiece
    Keypad
    Power button, Volume +/- button,Scan button × 2
    Handle scan button ×1
    Sensors
    Gravity sensor, Light sensor, Proximity sensor,
    Vibration motor
    Data collection
    Barcode scanning (Optional)
    2D Imager scanner
    Honeywell N3603
    2D
    Symbologies
    PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,
    Maxicode,Hanxin Code,etc.
    UHF
    Engine
    Engine CM2000-1, based on Impinj Indy R2000
    Frequency(CHN)
    920-925MHz
    Frequency(USA)
    902-928MHz
    Frequency(EHR)
    865-868MHz(ETSI EN 302 208)
    Frequency(Other)
    Other multinational frequency standards (can be customized)
    Protocol
    EPC C1 GEN2 / ISO18000-6C/6B
    Antenna
    Circularly polarized antenna (4dBi)
    Power
    30dBm, support +5dBm ~ +30dBm adjustment
    Distance
    0-13m
    Reading speed
    >200 tags per second (circular polarization)
    Note:*Card reading distance and group reading rate are related to the actual environment
    Camera
    Rear camera
    13MP HD camera,Support auto focus,
    Flash, Anti-shake, Macro shooting
    Front camera
    2MP color camera
    NFC (optional)
    Frequency
    13.56MHz
    Protocol
    Support ISO14443A/B, 15693 agreement
    Distance
    2cm-5cm
    Language/input method
    Input
    English, Pinyin, Five strokes, Handwriting input, Support soft keypad
    Language
    Language packs in Simplified Chinese,
    Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
    User environment
    Operating temperature
    -20℃ - 55℃
    Storage temperature
    -40℃ - 70℃
    Environment humidity
    5%RH--95%RH(no condensation)
    Drop specification
    6 sides Supports 1.2 meters drops and 30 times
    to the concrete within the operating temperature
    Rolling test
    500×0.5m rolling for 6 sides
    Sealing
    IP66
    Accessories
    Standard
    Adapter, Data cable, Protective film,
    Instruction manual
